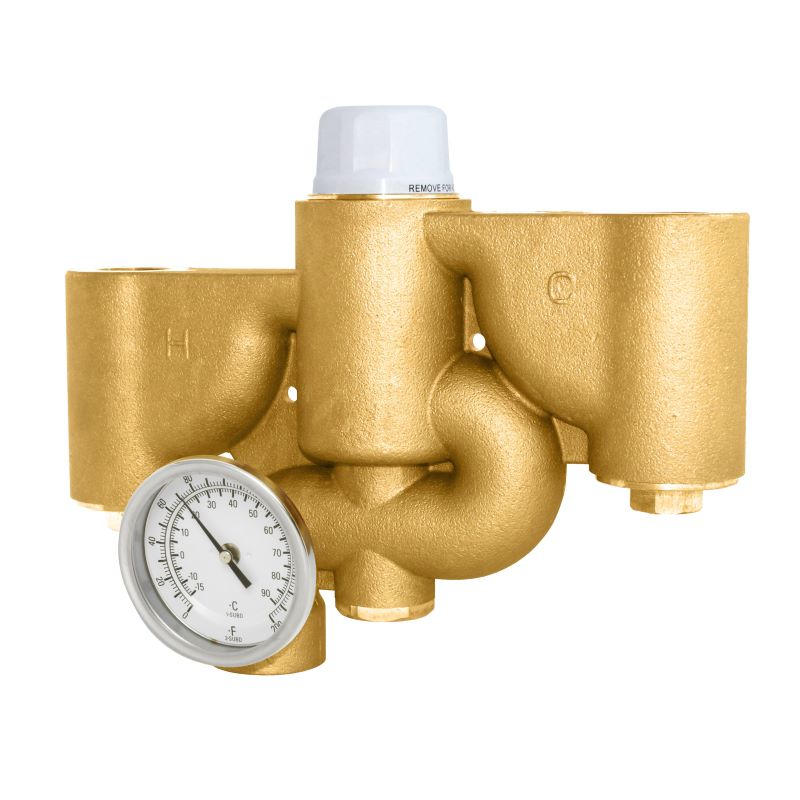

Speakman STW-350 Thermostatic Mixing Valve
Speakman STW-350 Thermostatic Mixing Valve is able to support up to three emergency showers and/or eyewashes. The STW-350 is made of two independent thermostats housed in a single casting that is capable of supplying 62.5 GPM at 30psi of tepid water. The twin thermostatic cartridges respond independently to the incoming hot and cold water and provide backup protection against element failure. If one fails, the other continues to function. The STW-350 mixing valve is set at the factory to deliver 85ºF outlet flow. The thermostatic cartridge responds to changes in the hot and cold water supplies. If the element fails, the valve will provide cold water flow. With the ANSI Z-358.1 2014 standard, it is mandatory that the flushing fluid be between 60 and 100 degrees fahrenheit. Thermostatic mixing valves should be vandal resistant with the use of lockout/tagout.
Speakman STW-350 Spec Sheet
Price:
$1,025.00
Click for Quantity Discounts
| Quantity | Discount |
|---|---|
| 2-4 | 5% |
| 5+ | 10% |
Free Shipping
VALVE FEATURES:
- 62.5 GPM (236.4 L/min) capacity supports multiple eyewash, eye/face wash, and/or shower combinations @ 30 PSI differential pressure
- 41.1 GPM (155.7 L/min) cold water bypass in case of hot water failure @ 30 PSI differential pressure
- Automatic spring check stops at inlets with cylindrical filter screens
- Maximum working pressure: 125 PSI
- 1” NPT female inlets and 1-1/4” NPT female outlet connections
TEMPERATURE FEATURES:
- Adjustable set point, factory set to 85 °F
- Valve holds to +/- 3 °F
- Valve holds positive shut-off when cold water supply is lost
- Hot water inlet temperature range: 120 °F to 180 °F
- Cold water inlet temperature range: 40 °F to 70 °F
- Outlet water temperature range: 65 °F to 95 °F
- Minimum temperature differential: 10 °F (cold water supply to valve set point)
STANDARDS:
- ASSE 1071 certified
- CSA B125.3 certified
- NSF 372 certified
- cUPC certified
WARRANTY:
- 3 Year Limited Warranty (commercial)
