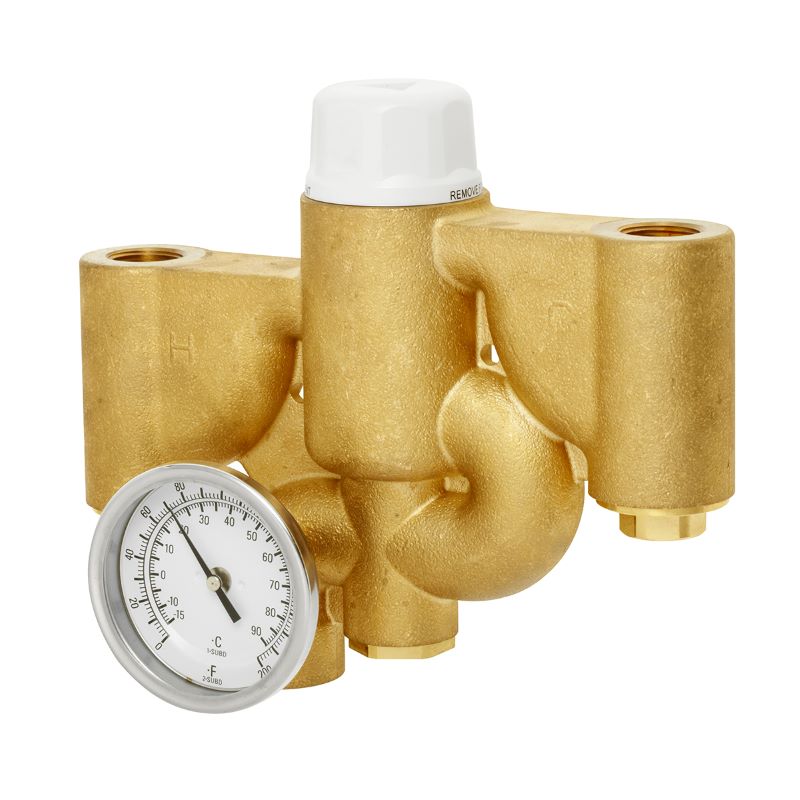

Speakman STW-362 Thermostatic Mixing Valve
The Speakman STW-362 Safe-T-Zone Thermostatic Mixing Valve is a high-quality, cost-effective solution for supplying tepid water to your emergency shower. Featuring a 38.0 GPM flow capacity at 30 PSI. Every Safe-T-Zone is able to support an emergency combination station, an emergency shower, or multiple eye, eye/face washes. Valve is preset to 85° F, but is equipped with an adjustable set point, enabling you to set a custom temperature limit ideal for your facility ensuring you are within ANSI/ISEA Z358.1 guidelines. The Safe-T-Zone Valve provides 24.9 GPM cold water bypass in the event of a hot water failure and includes a positive shut-off when the cold water supply is lost. The Speakman Safe-T-Zone is constructed entirely of brass and is certified to ASSE 1071, CSA B125.3, ANSI/NSF 372 standards as well as being CUPC certified. Replaces the Speakman SE-362 Thermostatic Mixing Valve.
Speakman STW-362 Thermostatic Mixing Valve Spec Sheet
CAN SHIP IN 24 HOURS
Price:
$925.00
Click for Quantity Discounts
| Quantity | Discount |
|---|---|
| 2-4 | 5% |
| 5+ | 10% |
Free Shipping
VALVE FEATURES

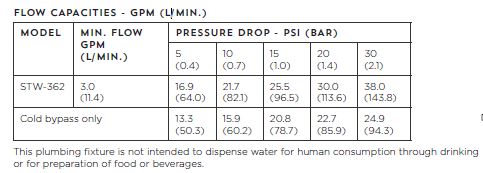

- 38.0 GPM capacity supports multiple eyewash, eye/face wash, and/or shower combinations @ 30 PSI differential pressure
- 24.9 GPM (94.3 L/min) cold water bypass in case of hot water failure @ 30 PSI differential pressure
- Automatic spring check stops at inlets with cylindrical filter screens
- Maximum working pressure: 125 PSI
- 3/4” NPT female inlets and 1” NPT female outlet connections
TEMPERATURE FEATURES
- Adjustable set point, factory set to 85 °F
- Valve holds to +/- 3 °F
- Valve holds positive shut-off when cold water supply is lost
- Hot water inlet temperature range: 120 °F to 180 °F
- Cold water inlet temperature range: 40 °F to 70 °F
- Outlet water temperature range: 65 °F to 95 °F
- Minimum temperature differential: 10 °F (cold water supply to valve set point)
STANDARDS
- ASSE 1071 certified
- CSA B125.3 certified
- NSF 372 certified
- cUPC certified
WARRANTY
- 3 Year Limited Warranty (commercial)
