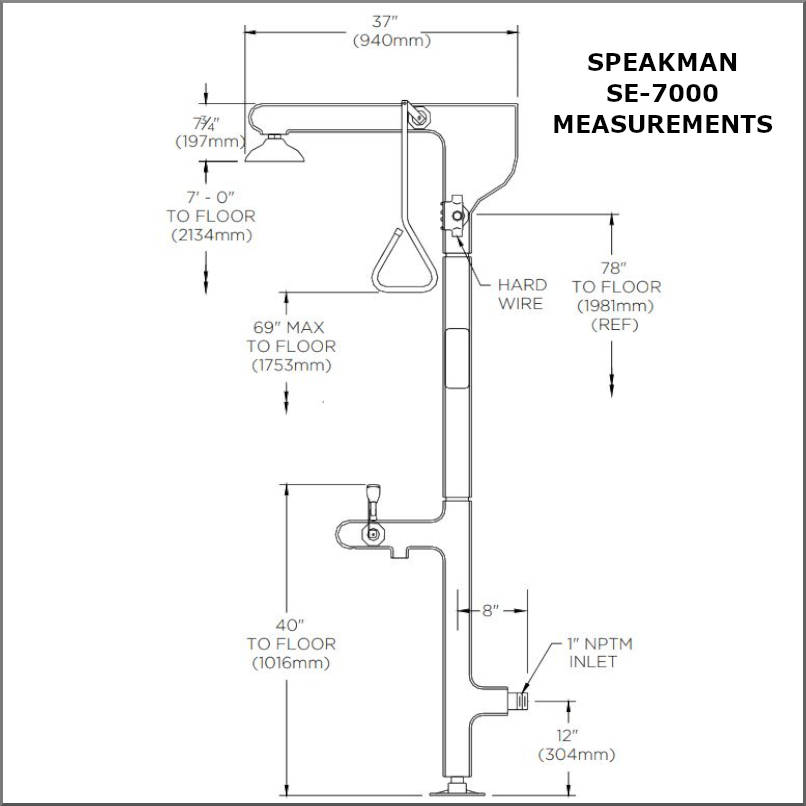

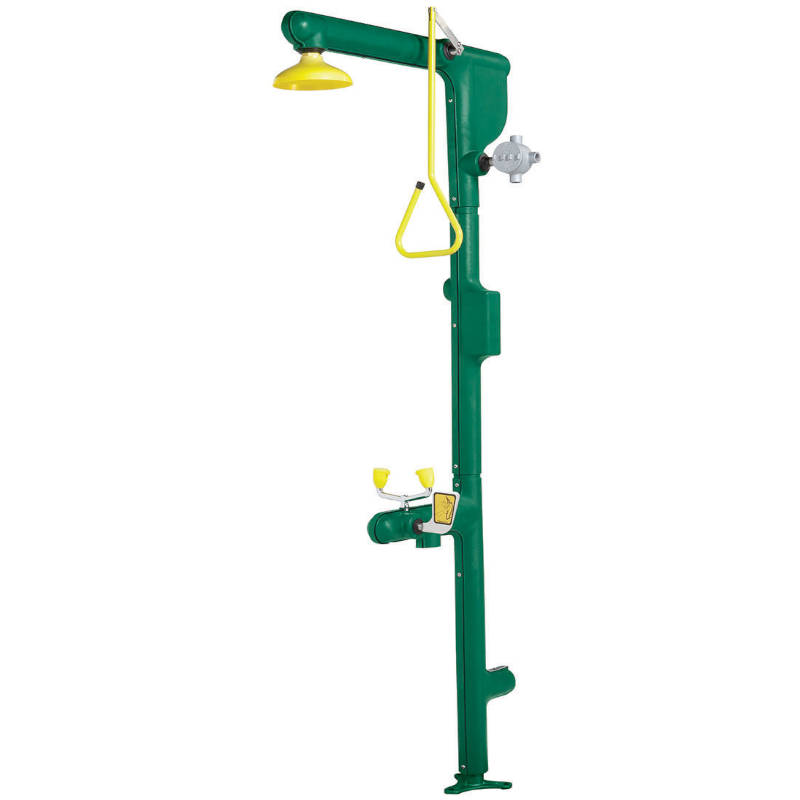

Speakman Freeze Protected Combination Eye/Face Shower Unit SE 7000

Customer Reviews

ELECTRICAL CONNECTION 1. Power supply requirement is - 120 VAC, 60 Cycle, Single Phase for SE-7000 & SE-7001 - 220 VAC, 50 Cycle, Single Phase for SE-7000-220V50C & SE-7001-220V50C 2. Ground-fault protection should be GFPD with a nominal 30 milliampere trip level to prevent nuisance tripping. 3. Minimum 15 AMP breaker is required. (Breaker for shower only). 4. Use #14 AWG wire for power supply and make your hard wire connection inside the junction box. Three (3) indicator wires * are supplied. You can throw these away once you have made your connection. *Indicator wires: 120 VAC, 60 cycles *Indicator Wires: 220VAC, 50 Cycle Black wire: Hot Black Wire: Hot White wire: Common Black Wire: Common Green wire: Ground Green Wire: Ground ELECTRICAL NOTES 1. Make sure power supply is in compliance with National Electric Code (N.E.C.). 2. Be sure electrical supply is NEVER TURNED OFF DURING COLD WEATHER! 3. If you have a unit without a stanchion light, you are required to light the area where your unit is installed. OPERATION / TESTING 1. Once electrical connections are complete and unit is assembled and plumbed, test unit to verify water flow by activating the eye/face wash. 2. Activate the shower by pulling the pull rod. Flow should be a full, dense curtain of water. If this type flow is not being attained, check incoming pressure. (30 PSI min. flow pressure)  UNITS WITH PILOT LIGHT OPTION Push pilot light lens to verify electric power is on. In cold weather, the red pilot light will glow, indicating the shower's thermostat is closed and the heat tape is operating. NOTE: It is normal for the pilot light to glow in above-freezing weather, since the thermostat is sensing the temperature of the water in the pipe and not the outside air. The thermostat will open and the pilot light will go off when water temperature rises above 70° F.  UNITS WITH AREA LIGHT OPTION Select units have overhead lights. The overhead light will remain on once power is applied. This light serves two functions: (A) Indicates that there is power to the unit, (B) Helps to locate the safety shower. MAINTENANCE 1. To ensure proper operation, this unit should be tested weekly per ANSI Z358.1. "Bump" testing both the eye/face wash and shower valve is necessary to be sure water is flowing. Be sure electrical power has not been disrupted. On units with pilot light feature, push pilot light lens to assure that electrical current is being supplied to unit. 2. Be sure power supply is locked out before doing any electrical maintenance to this unit. (especially in hazardous locations) 3. Available replacement parts can be found on attached sheet. If you cannot find what you need, or if you have any problem with instruction, contact your local Speakman representative, or Speakman Company Customer Service at 1-800-537-2107, FAX: 1-800-977-2747.
