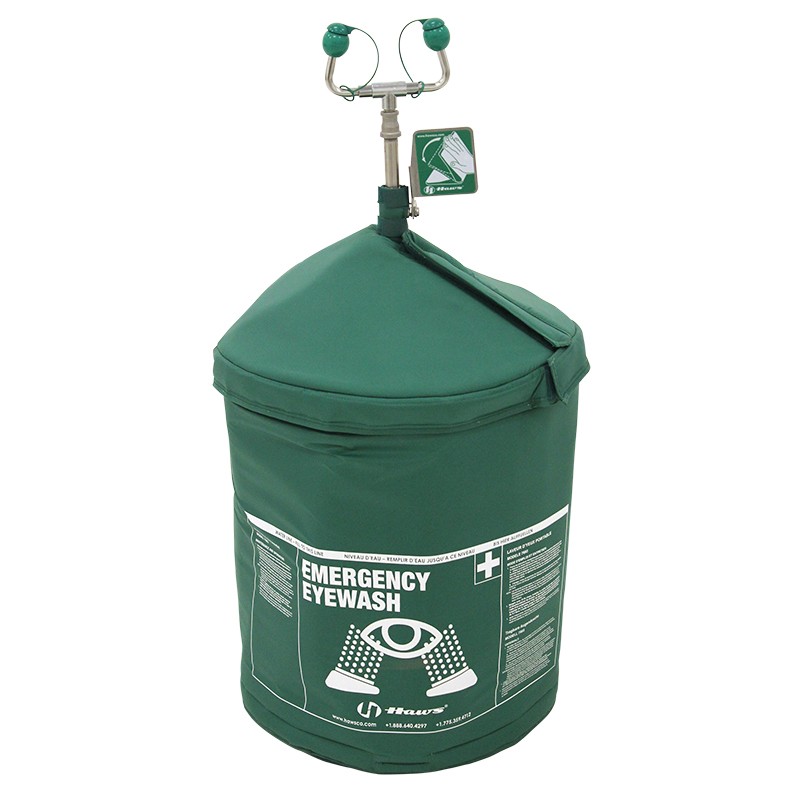

Haws 7603T240H HazLoc Portable Stainless Steel 15 Gallon Air-Pressurized 240V Tempered Eyewash Tank

The Haws 7603T240H is an ideal, cost-efficient solution for a facility's ANSI eyewash requirements in locations without access to a continuous potable water source. The pressurized 15 gallon (56.8 L) portable hazardous location eyewash uses a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered water in operating temperatures between -20° F (-30° C) and 100° F (38° C) for locations without access to a continuous potable water source.

• Features a 15 gallon (56.8 L) stainless steel tank
• Upgraded ball valves with stainless steel ball and stem
• Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
• Measurements: 39-1/2" (100.3 cm) high, 16" (40.6 cm) diameter
• 240VAC, 50/60Hz, 0.64A electrical requirement
• Power cord not provided - power connection must be made according to code using Class I Division 2 compliant equipment
• CSA certified for NEMA/Type 4 in Class 1, Division 2, Group B, C, D, T6, and Class 2, Division 2, Group F, G locations; and to ANSI/ISEA Z358.1

CONSTRUCTION

• Stainless steel constructed tank makes for a solid portable unit with added resistance against corrosion and breakage.

ADDED PROTECTION

• Green polyethylene plastic dust covers that release with water pressure keep the unit protected from debris up until the last second before use further optimizing operation.

VALVES

• Valve comes equipped with stainless steel ball and stem for added protection against corrosion and breakage. Full continuous flow occurs with the simple push of a stainless steel flag.

SAFETY

• Air pressure gauge, pressure relief valve, and tire-type air fill valve decrease the possibility of mishaps and make for a  safer piece of emergency equipment.

FLOW CONTROLS

• Green ABS plastic Soft-Flo anti-surge heads distribute water at a rate of .25 gpm (.9 L) when pressure is between 30 and 75 psi (2.1 and 5.1 bar).

TEMPERED WATER

• Heated, insulated blanket provides ANSI compliant tempered potable water in operating temperatures down to -20° F (-30° C). Unit will stay tempered in non-extreme outdoor conditions (below 100° F (38° C)). Installed over the Haws model 7603.

ANSI COMPLIANCE

• 10 useable gallons of water provide 15 minute flushing.
