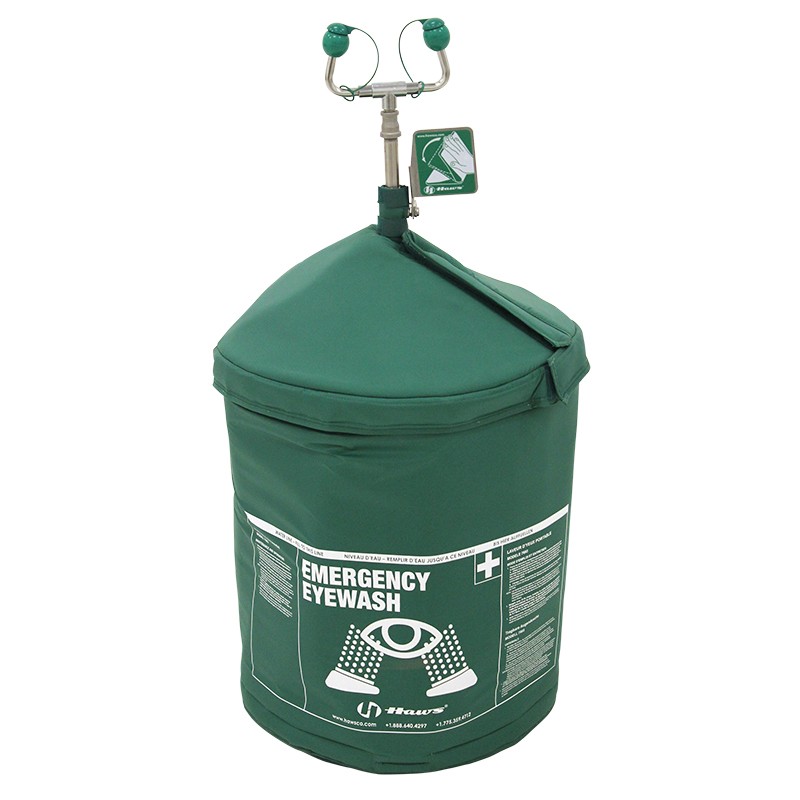

Haws 7603T240 Portable Stainless Steel 15 Gallon Air-Pressurized 240V Tempered Eyewash Tank
Haws 7603T240 Portable Stainless Steel 15 Gallon Air-Pressurized 240V Tempered Eyewash Tank is a 15-gallon (56.8 L), tempered, pressurized
portable eyewash with a stainless steel tank, and NEMA 4
heated, insulated blanket to provide ANSI compliant
tempered potable water in ambient operating temperatures
to -20° F (-30° C) and 100° F (38° C). Ideal for remote
locations without access to continuous potable water. 240V,
50/60Hz 0.64A electrical requirement. Power cord not
provided - must install appropriate cord per code.
Haws 7603T240 Spec Sheet
Haws 7603 Operation and Installation Instructions
Made in USA
Price:
$3,848.84
Click for Quantity Discounts
| Quantity | Discount |
|---|---|
| 6-11 | 2% |
| 12-24 | 4% |
Free Shipping
The Haws 7603T240 is an ideal, cost-efficient solution for a facility's ANSI eyewash requirements in locations without access to a continuous potable water source. The pressurized 15 gallon (56.8 L) portable eyewash uses a NEMA 4 heated, insulated blanket to provide ANSI compliant tempered water in operating temperatures between -20° F (-30° C) and 100° F (38° C) for locations without access to a continuous portable water source.
- Features a 15 gallon (56.8 L) stainless steel tank
- Upgraded ball valves with stainless steel ball and stem
- Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
- Measurements: 39-1/2" (100.3 cm) high, 16" (40.6 cm) diameter
- 240VAC, 50/60Hz, 0.64A electrical requirement
- CSA certified for NEMA/Type 3R in ordinary locations, and to ANSI/ISEA Z358.1
CONSTRUCTION
- Stainless steel constructed tank makes for a solid portable unit with added resistance against corrosion and breakage.
ADDED PROTECTION
- Green polyethylene plastic dust covers that release with water pressure keep the unit protected from debris up until the last second before use further optimizing operation.
VALVES
- Valve comes equipped with stainless steel ball and stem for added protection against corrosion and breakage. Full continuous flow occurs with the simple push of a stainless steel flag.
SAFETY
- Air pressure gauge, pressure relief valve, and tire-type air fill valve decrease the possibility of mishaps and make for a safer piece of emergency equipment.
FLOW CONTROLS
- Green ABS plastic Soft-Flo anti-surge heads distribute water at a rate of .25 gpm (.9 L) when pressure is between 30 and 75 psi (2.1 and 5.1 bar).
TEMPERED WATER
- Heated, insulated blanket provides ANSI compliant tempered potable water in operating temperatures down to -20° F (-30° C). Unit will stay tempered in non-extreme outdoor conditions (below 100° F (38° C)). Installed over the Haws model 7603.
ANSI COMPLIANCE
- 10 useable gallons of water provide 15 minute flushing.
