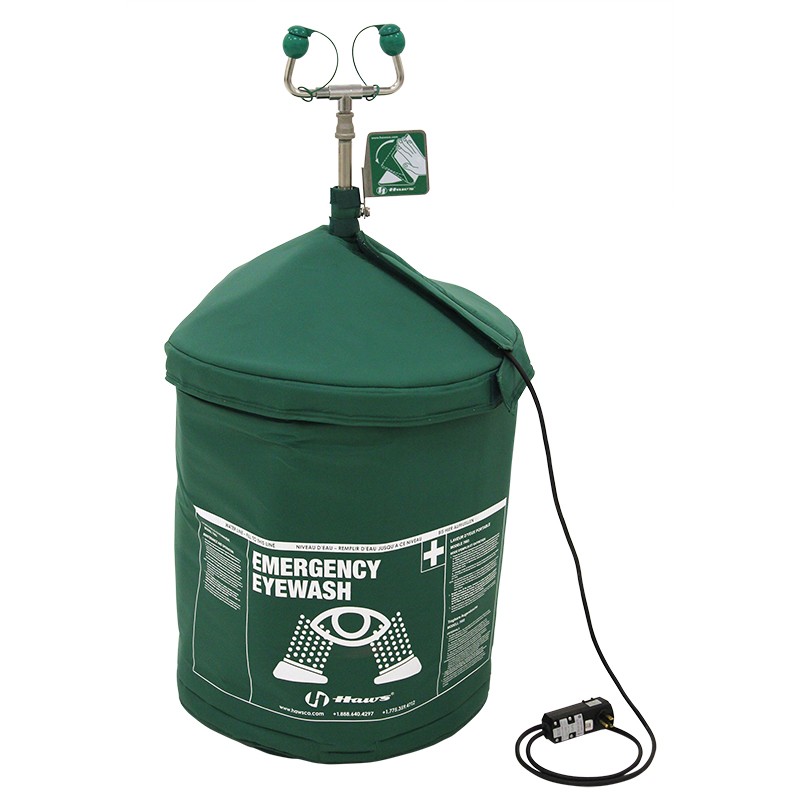

Haws 7603T Portable Stainless Steel 15 Gallon Air-Pressurized 120V Tempered Eyewash Tank
Haws 7603T Portable Stainless Steel 15 Gallon Air-Pressurized 120V Tempered Eyewash Tank is a 15-gallon (56.8 L), tempered, pressurized
portable eyewash with a stainless steel tank, and NEMA 3R
heated, insulated blanket to provide ANSI compliant
tempered potable water in ambient operating temperatures
between -20° F (-30° C) and 100° F (38° C). Ideal for
remote locations without access to continuous potable
water. 120VAC, 60Hz, 1.38A electrical requirement with
supplied 8' GFCI power cord. Voltage and Haz Loc options
available.
Haws 7603T Spec Sheet
Haws 7603 Operation and Installation Instructions
Made in USA
Price:
$3,848.84
Click for Quantity Discounts
| Quantity | Discount |
|---|---|
| 6-11 | 2% |
| 12-24 | 4% |
Free Shipping
The Haws 7603T is an ideal, cost-efficient solution for a facility's ANSI eyewash requirements in locations without access to a continuous potable water source. The pressurized 15 gallon (56.8 L) portable eyewash uses a NEMA 3R heated, insulated blanket to provide ANSI compliant tempered water in operating temperatures between -20° F (-30° C) and 100° F (38° C) for locations without access to a continuous potable water source.
- Features a 15 gallon (56.8 L) stainless steel tank
- Upgraded ball valves with stainless steel ball and stem
- Protective measures include: air pressure gauge, pressure relief valve, and tire-type air fill valve
- Measurements: 39-1/2" (100.3 cm) high, 16" (40.6 cm) diameter
- Power cord included
- CSA certified for NEMA/Type 3R in ordinary locations, and to ANSI/ISEA Z358.1
CONSTRUCTION
- Stainless steel constructed tank makes for a solid portable unit with added resistance against corrosion and breakage.
ADDED PROTECTION
- Green polyethylene plastic dust covers that release with water pressure keep the unit protected from debris up until the last second before use further optimizing operation.
VALVES
- Valve comes equipped with stainless steel ball and stem for added protection against corrosion and breakage. Full continuous flow occurs with the simple push of a stainless steel flag.
SAFETY
- Air pressure gauge, pressure relief valve, and tire-type air fill valve decrease the possibility of mishaps and make for a safer piece of emergency equipment.
FLOW CONTROLS
- Green ABS plastic Soft-Flo anti-surge heads distribute water at a rate of .25 gpm (.9 L) when pressure is between 30 and 75 psi (2.1 and 5.1 bar).
TEMPERED WATER
- Heated, insulated blanket provides ANSI compliant tempered potable water in operating temperatures down to -20° F (-30° C). Unit will stay tempered in non-extreme outdoor conditions (below 100° F (38° C)). Installed over the Haws model 7603.
ANSI COMPLIANCE
- 10 useable gallons of water provide 15 minute flushing.
