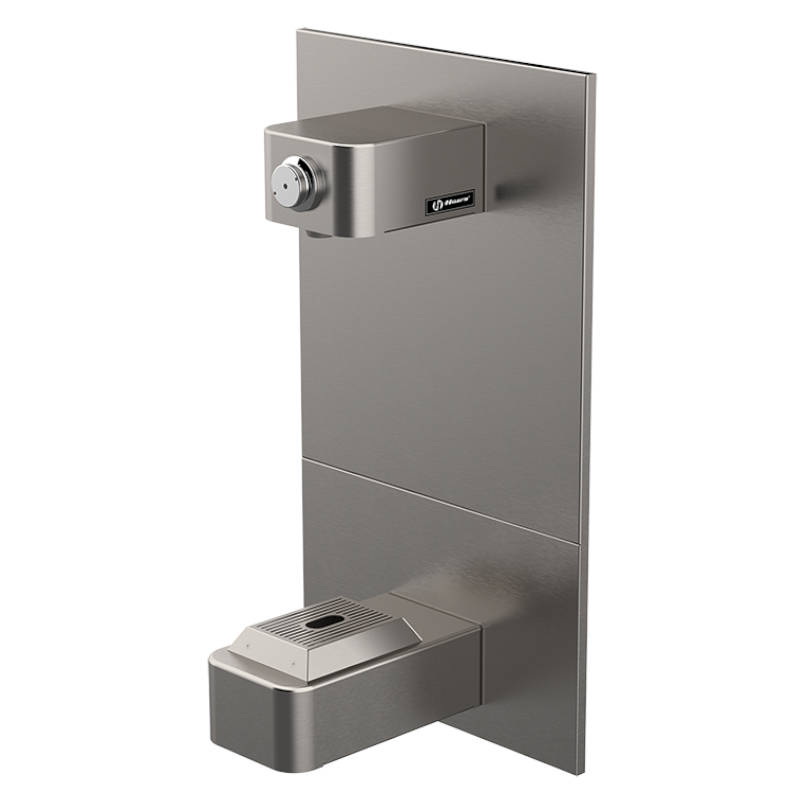

Haws 1922 Wall Mounted Bottle Filler with Drip Tray Drain

STAINLESS STEEL VALVE:

• The push-button activated valve offers the only all stainless steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and with front access to the water stream height adjustment for easy maintenance without having to remove the valve. Operating pressure range of 30 to 90 psi (2.1 to 6.2 bar).

CONSTRUCTION:

• Heavy-duty 14 gauge Type 304 Stainless Steel bottle filler and drain brackets with a satin finish that resists stains and corrosion, and have soft rounded corners. Unit features vandal-resistant bottom plates,  and a serviceable/replaceable dispensing nozzle.

ADA COMPLIANCE:

• ADA-compliant bottle filler required for wheel chair use, and for the standing person.

IN-WALL DRAIN:

• Drip tray captures unused water and lets it drain to the facilities waste lines.


LAMINAR FLOW:

• Adjustable, splash-free, 1 gpm (3.78 L) laminar flow.

MOUNTING OPTIONS:

• Select from mounting plate models to complete installation. Unit can mount on various wall types.

FOUNTAIN PUSH BUTTON:

• All chrome plated brass push button resists vandalism by allowing it to spin without unscrewing.
